OMRON LoRaWAN Weather Station Kit

Interested in sending micro-climate Weather Data to a Private Cloud Portal? Then the 2KW-0040-US-KIT1 is the solution for you! This is a KST Sensor-to-Cloud Kit, giving you everything you need, out of the box, to sense weather data remotely.

This Kit includes the OMRON 2KW-0040-US Weather Station with the following capabilities -

• Temperature: -20°C to +50°C with +/- 1°C Resolution
• Humidity: 0% to 100%RH with +/- 5% Resolution
• Light: 0 to 150,000 lx with +/- 25% Resolution
• Wind Velocity: 0 to 50m/s with +/- 30% Resolution
• Wind Direction: 0.1° to 360° with +/- 15° Resolution
• Barometric Pressure: 600hPa to 1100hPa with +/1 1hPa Resolution
• Rainfall: 0 to 50mm/h with +/- 20% Resolution

Data is sent via LoRaWAN to a Cellular-based Gateway and onward to your private Cloud Portal. Power for the entire system is provided by a Solar Panel, Charge Controller, and Battery. Simply use the enclosed pole mount kits to setup your Weather Station outside, plug the included LoRaWAN Gateway inside your home, office, or farmhouse to a wall outlet, and login to see your data! Everything needed to stream data is included. You don’t need WiFi, Ethernet, a Cellular Plan, or any outdoor power! We have even done all of the provisioning work for you, so there’s no passwords or accounts that you need to setup.

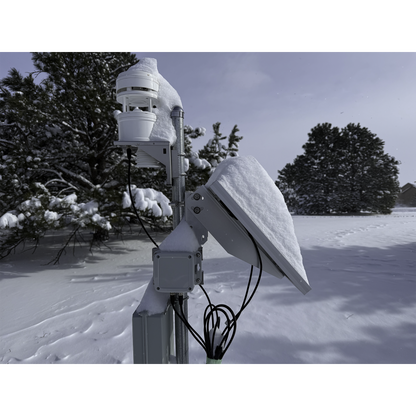

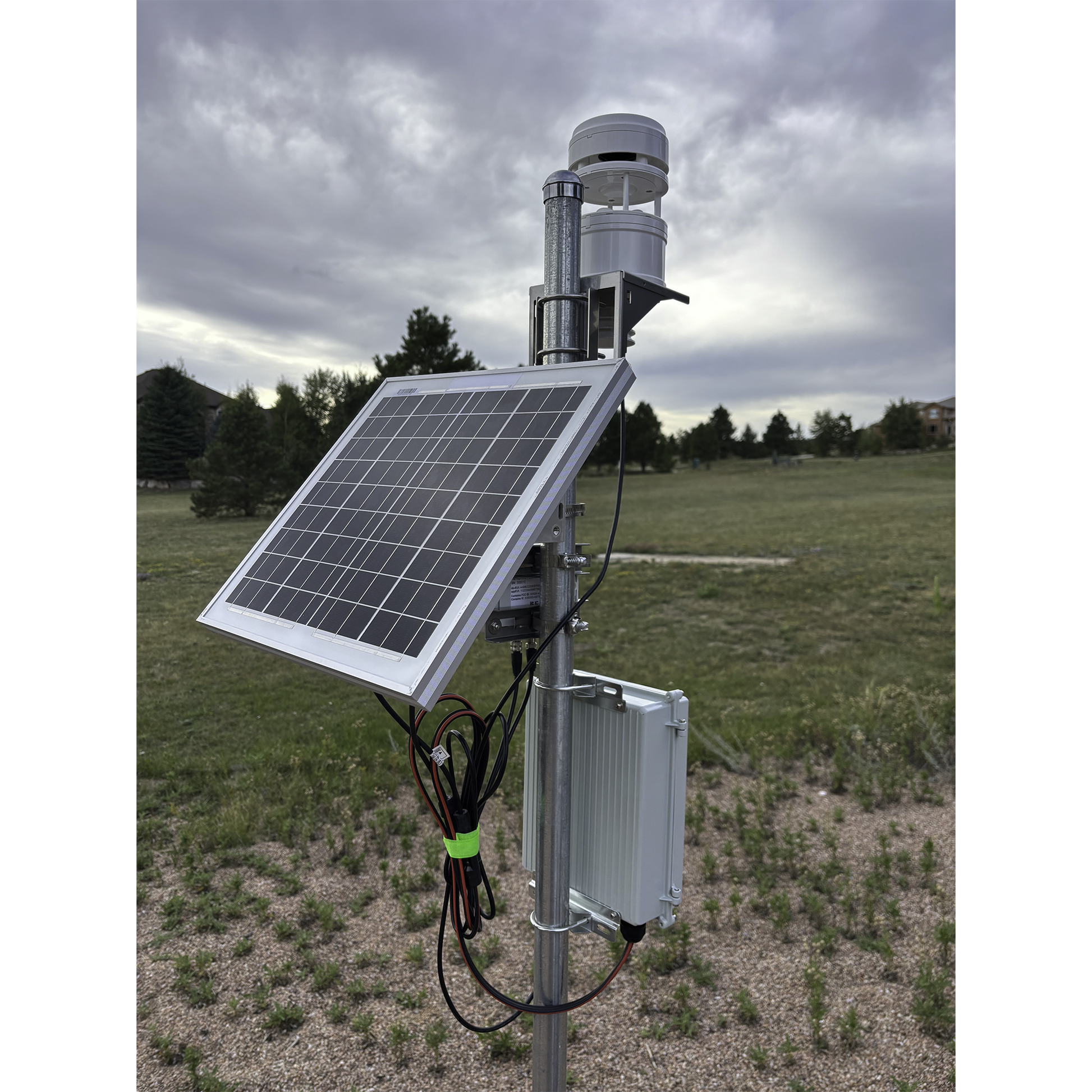

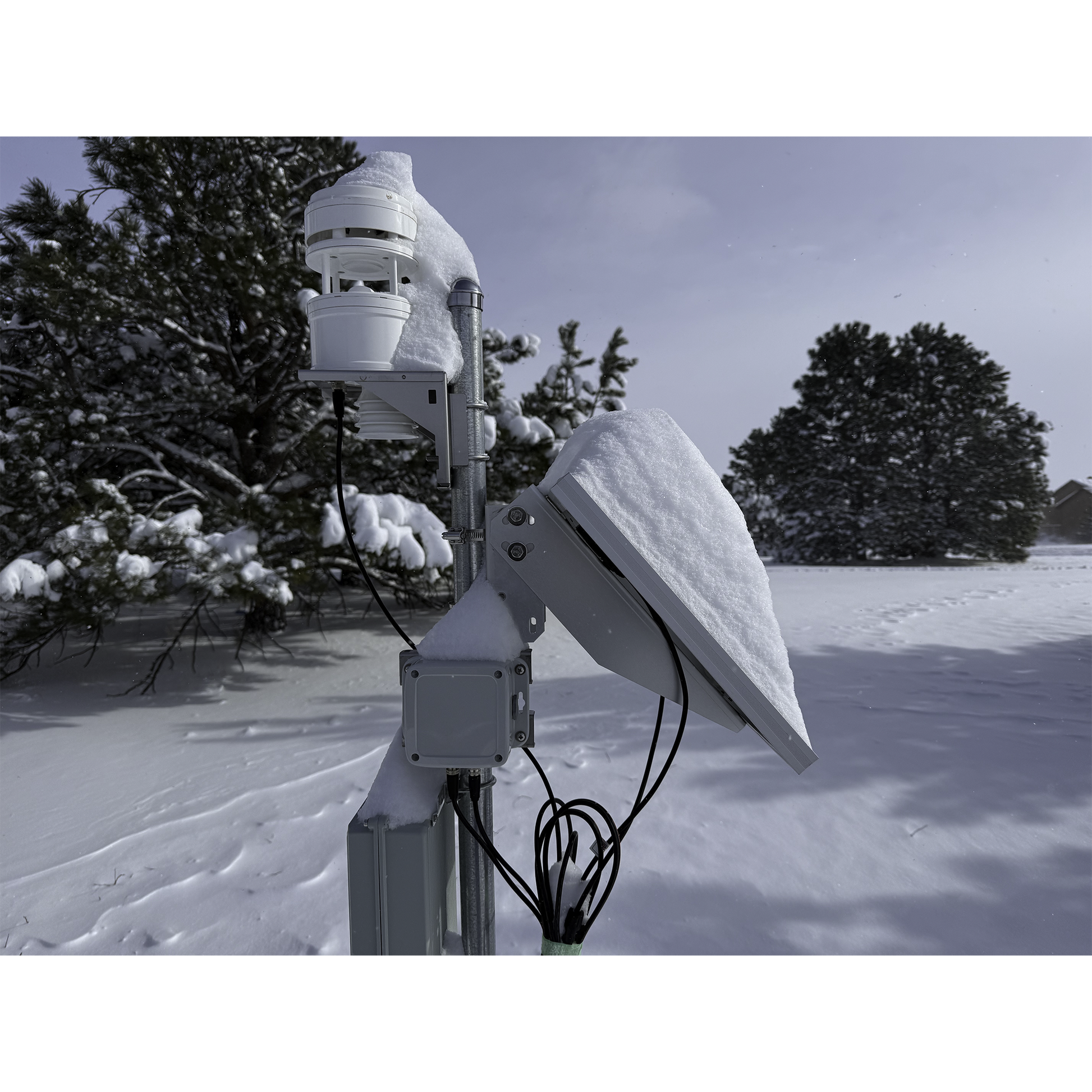

Assembly of the Kit outdoors to an existing pole should take less than 10 minutes.

This Kit includes one year of unlimited data and Cloud access. Keeping the Kit running after one year requires $10/month or $100/year.

You can go to our website right now to see a live demo!

Or, you can even view our live Kit pushing data to WeatherUnderground!

2KW-0040-US-KIT1: Everything you need to start sensing Weather! Our Kit includes -

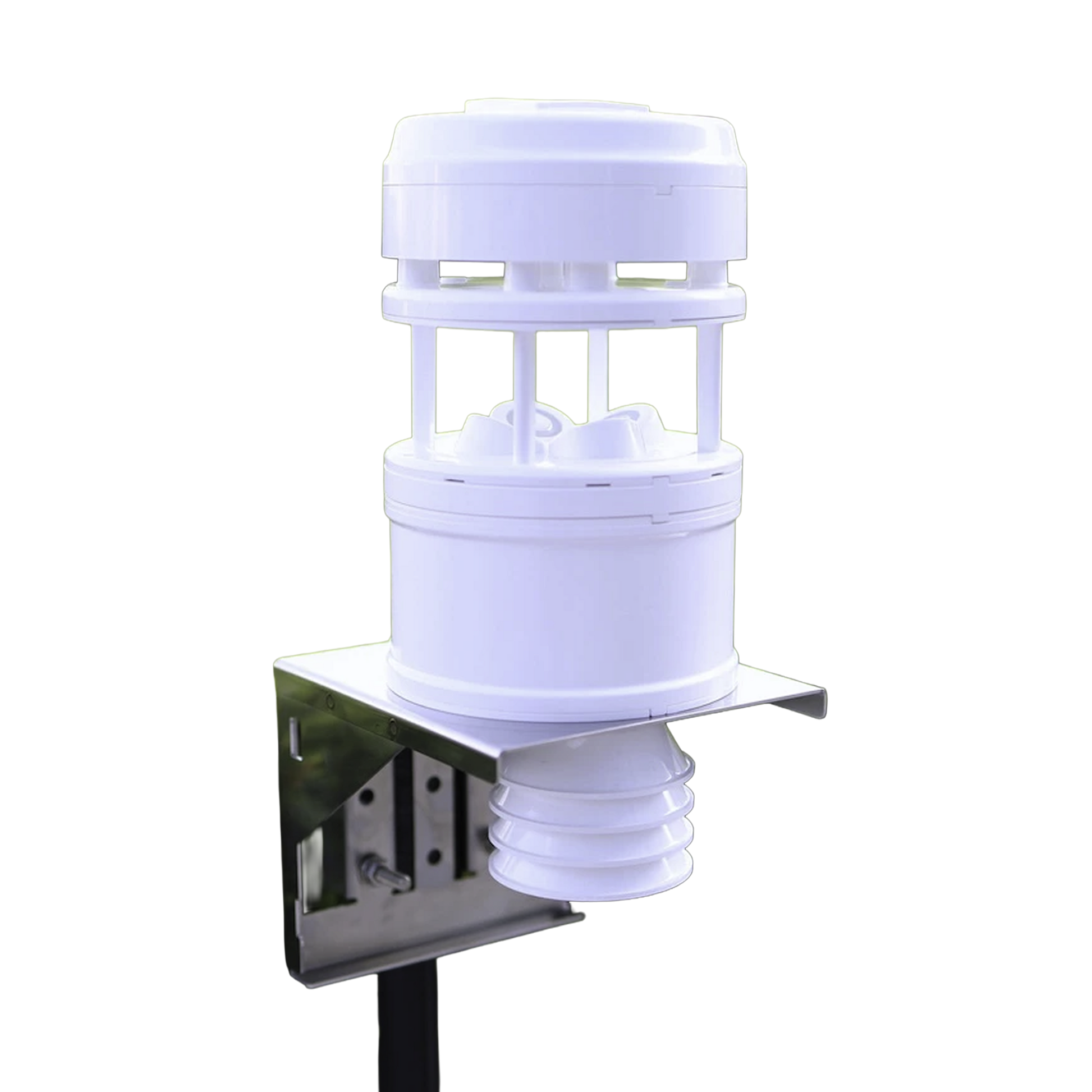

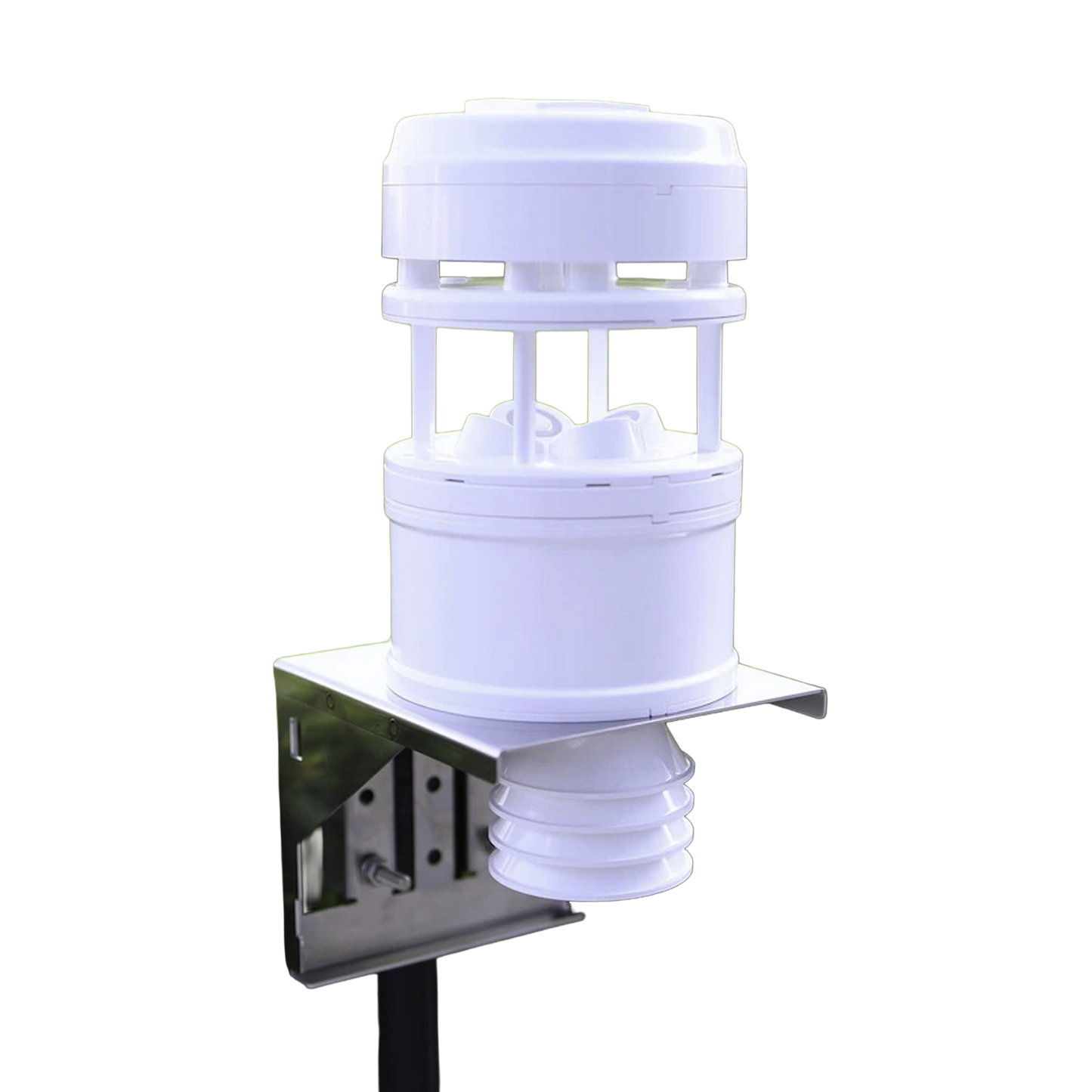

• 2KW-0040-US OMRON Weather Station

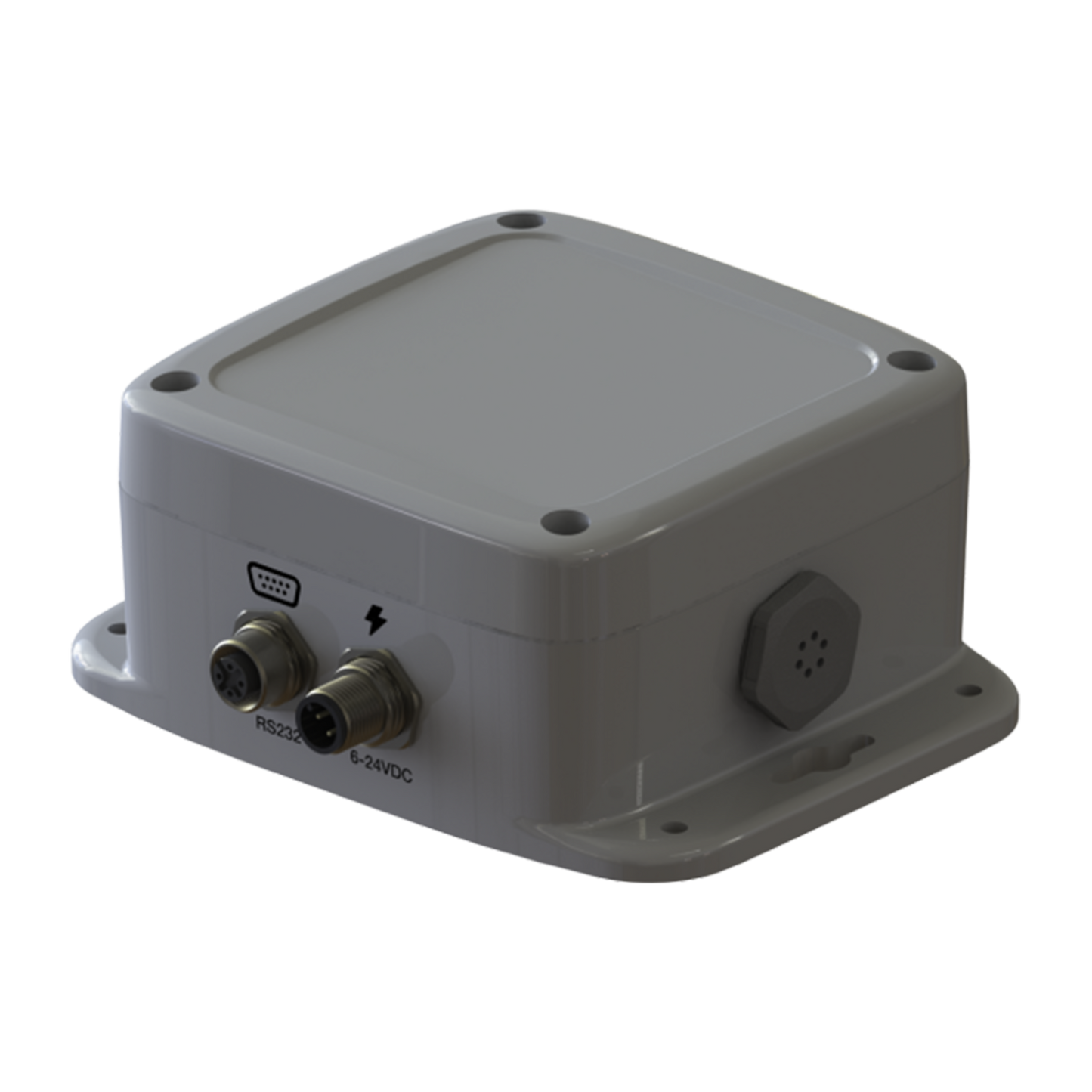

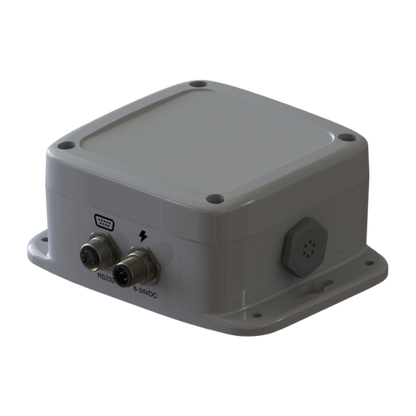

• KST5421-US915 Pre-commissioned RS232-to-LoRa RF Transceiver

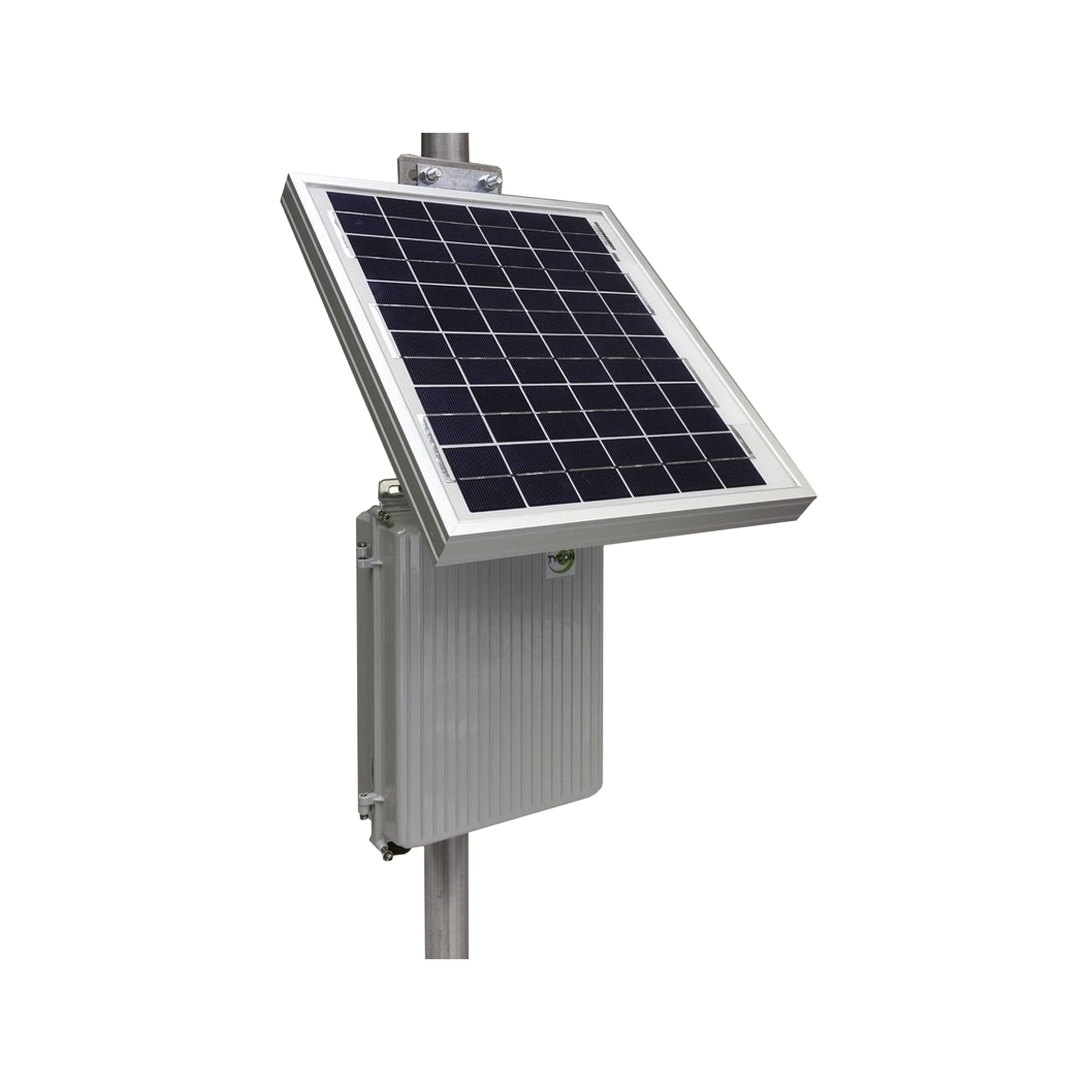

• 15W Solar Panel
• Solar Charge Controller
• Solar Battery capable of sourcing +12VDC and 2.5W Continuously for fully autonomous operation
• IP-rated Outdoor Cabinet for all Solar Components

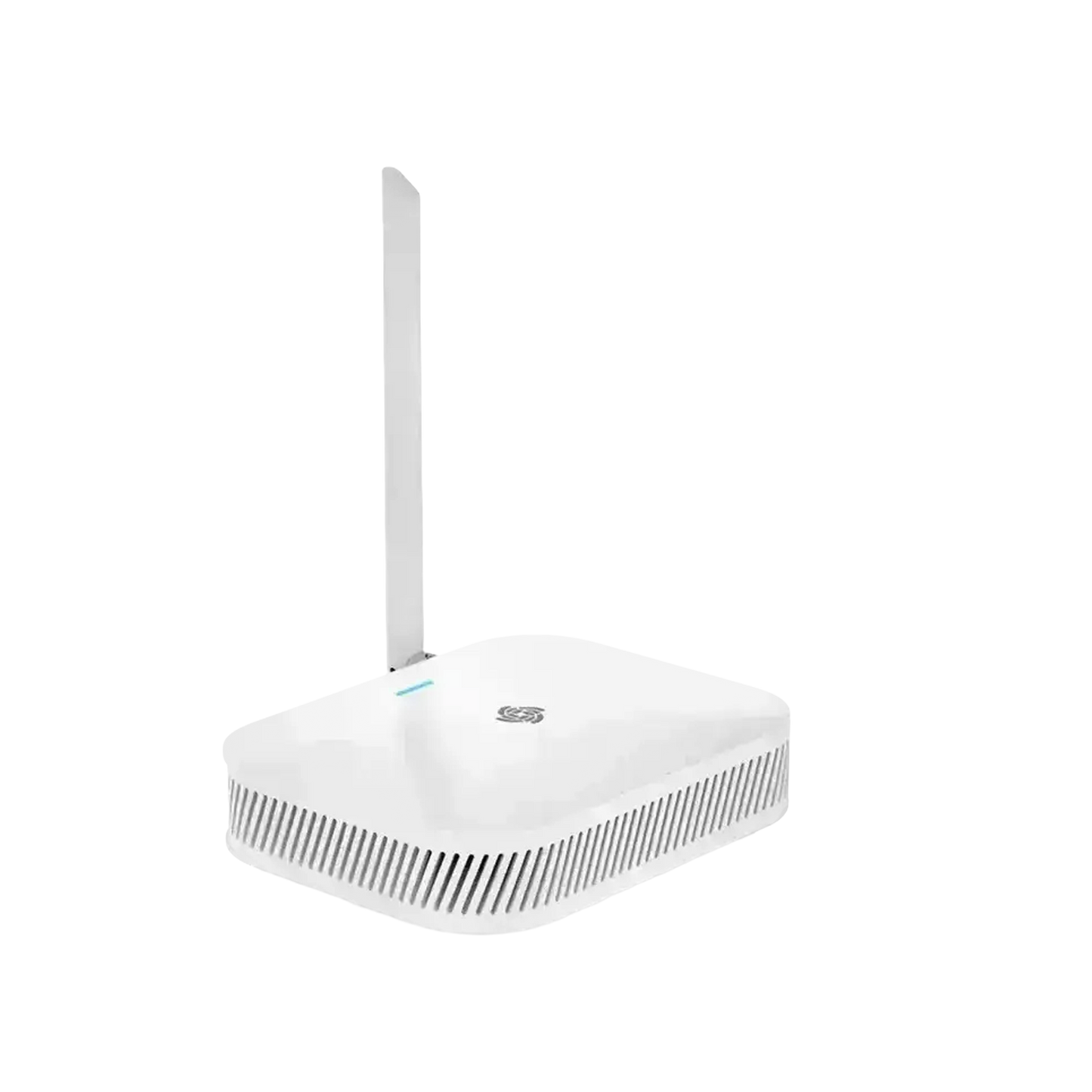

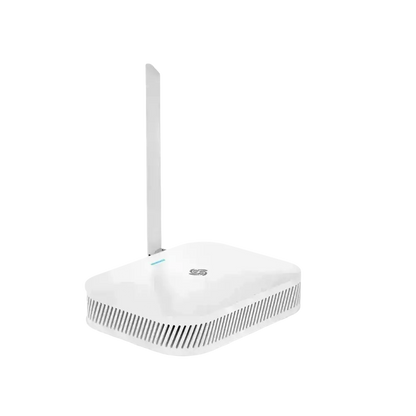

• Indoor-rated, Pre-commissioned LoRaWAN Gateway using Cellular for Backhaul (no WiFi or Ethernet needed!)
• QR Code for your Cloud-based, Private Weather Station Dashboard, including Login Instructions
• All required Power and Data Cabling

Please allow up to 4 weeks for delivery of your Kit!
