VL53 Distance Sensor Cap Evaluation Kit 1

Add spatial awareness to your product using our fast, precise, and robust Distance Sensor Caps! This Kit gives you everything you need to stream one VL53 Distance Sensor Cap to a free Windows Application giving you a live data feed and a way to record and playback sessions later.

• Distance sensing with 1mm accuracy up to a 3.5m range with a 90° field of view and less than a 10mm Dead Zone
• Ambient Light and Reflected Light Measurements
• Single +3.3VDC Power Supply and Compliant I2C Bus for your favorite microcontroller
• Human-safe, 940nm IR Class I Laser-based design based on the ST Microelectronics VL53 Series of sensors
• IP67, Outdoor Compliant (under proper installation conditions)
• M20 Size Compliant - easy to add to your enclosure!

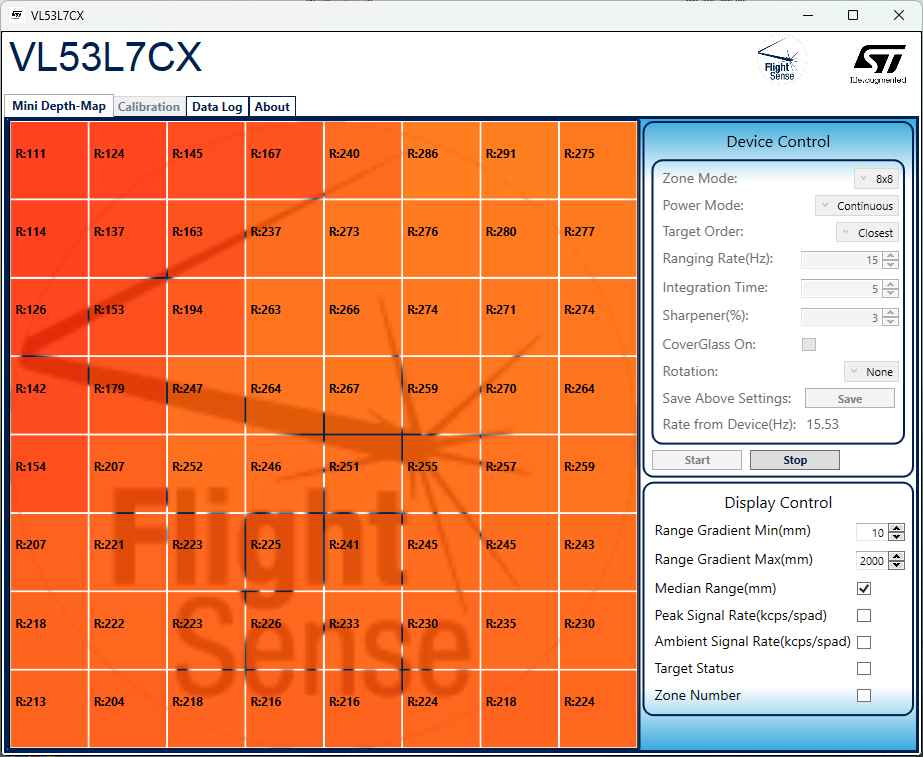

If you are interested in streaming live data from the VL53 Distance Sensor Cap Evaluation Kit 1 to your PC, you can download ST Micro's free software! For step-by-step instructions, please check out our tutorial.

Need three VL53 Distance Sensor Caps running at the same time? This kit may be a better choice for you!

Or do you have your own Host Microcontroller but need an easy way to interface to our VL53 Distance Sensor Caps? Then consider this kit instead.

You can go to our website right now to see a live demo!

KST3277-KIT1: Everything you need to start exploring distance applications!

• 1x Pre-programmed ST Microelectronics NUCLEO-F401RE
• 1x KST3280: VL53 Distance Sensor Cap Shield Supporting up to Three VL53 Distance Sensor Caps

• 1x KST3277: VL53L7CX Distance Sensor Cap + Nut
• 1x Mini USB to USB A Cable
